Installed in North Lake- 6163
A Complete Solar and Storage Upgrade with Full Backup Capability
This North Lake property received a full energy upgrade featuring a 50 kWh Alpha ESS battery system, a 5 kW inverter, and a 9.69 kW solar array. The system was designed to deliver strong daytime production, extensive night-time storage capacity, and full blackout protection for the home.
Installed Components
- 50 kWh Alpha ESS battery bank
- 5 kW Alpha ESS inverter
- 9.69 kW rooftop solar panel system
- Multiple cabinet-style battery units installed along the garage wall
- Impact-rated bollards installed in front of each battery unit
- Rigid conduit linking batteries, inverter, and switchgear
- Full blackout protection
Installation Layout and Approach

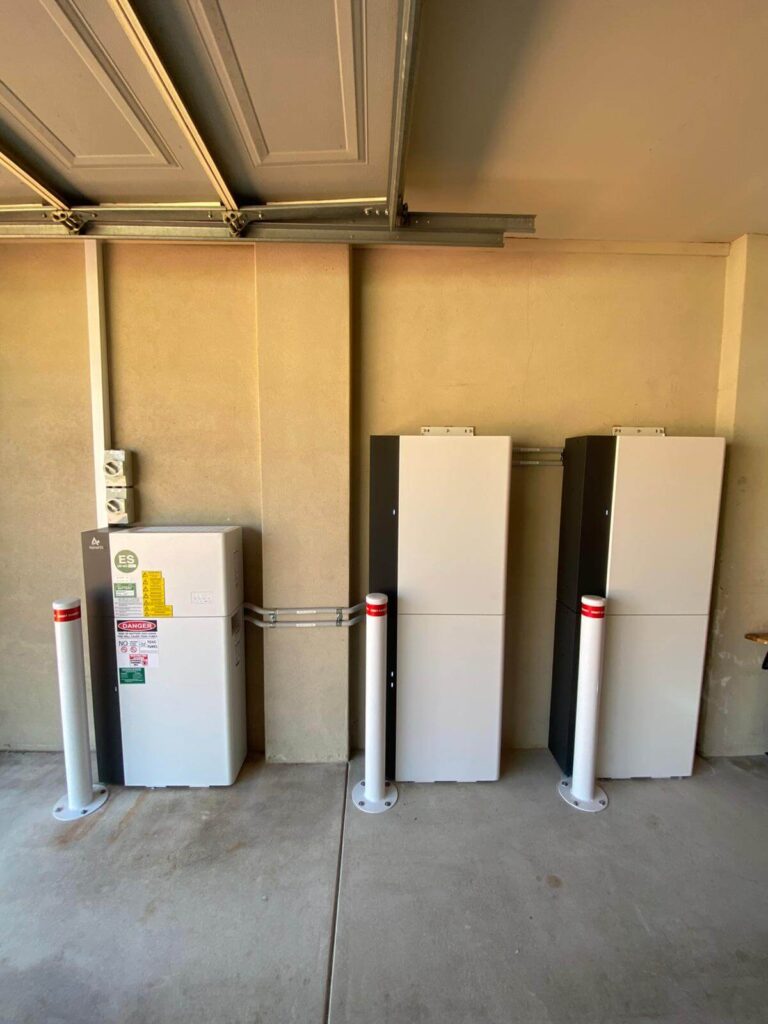

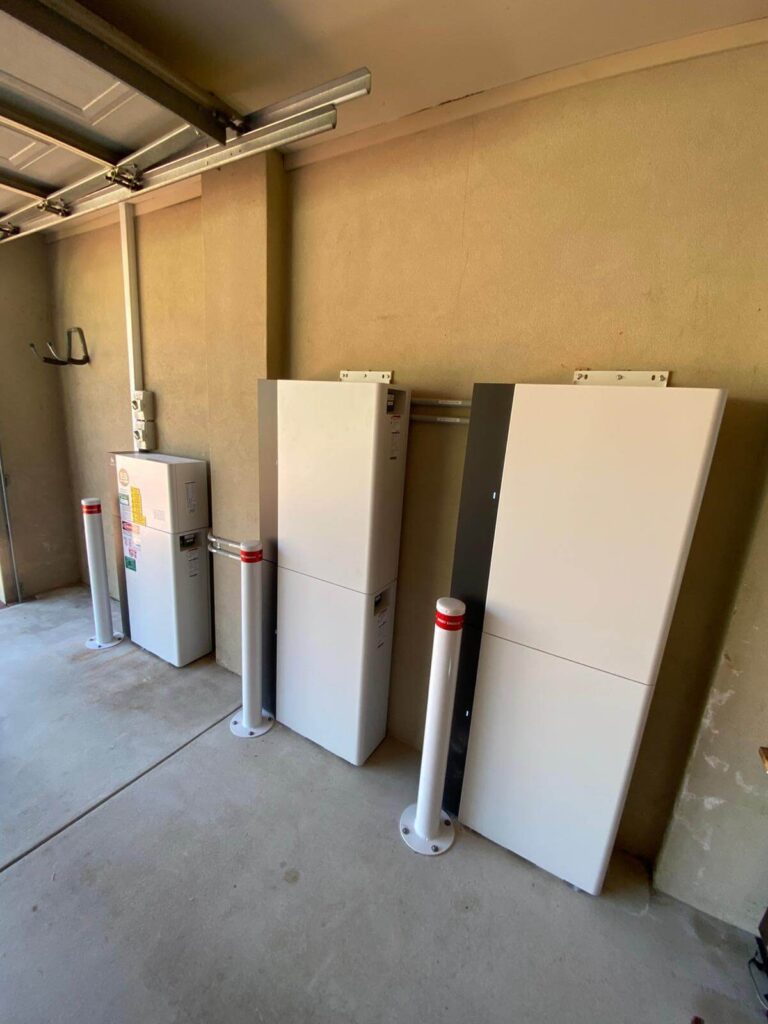

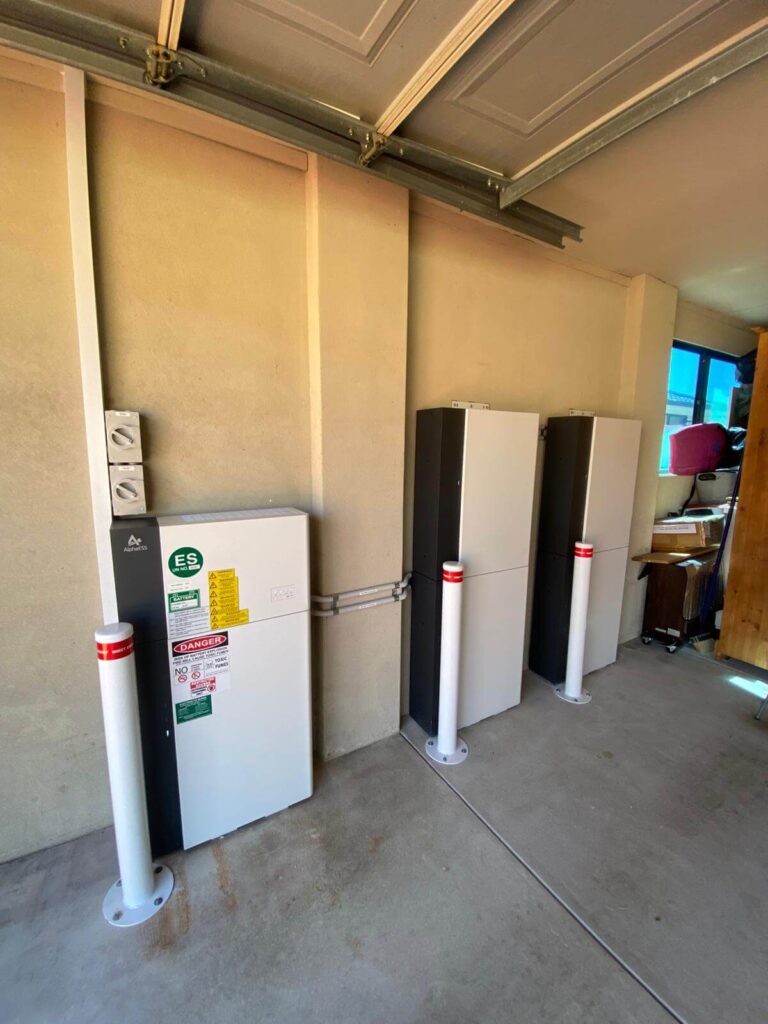

The battery cabinets were arranged neatly along the garage wall with proper spacing to support cooling and ongoing maintenance access. All conduit was run cleanly and secured to maintain a professional, compliant finish.
A 5 kW inverter was installed beside the battery bank to manage both solar production and battery charging. The wiring was positioned to keep the layout clear and functional.

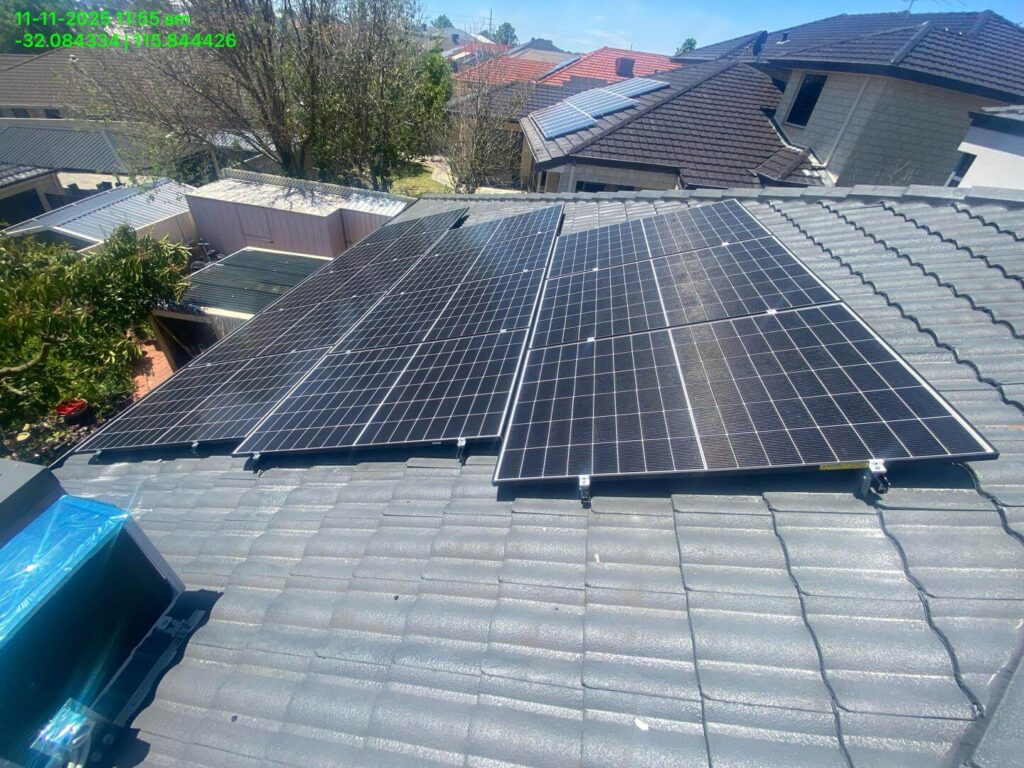

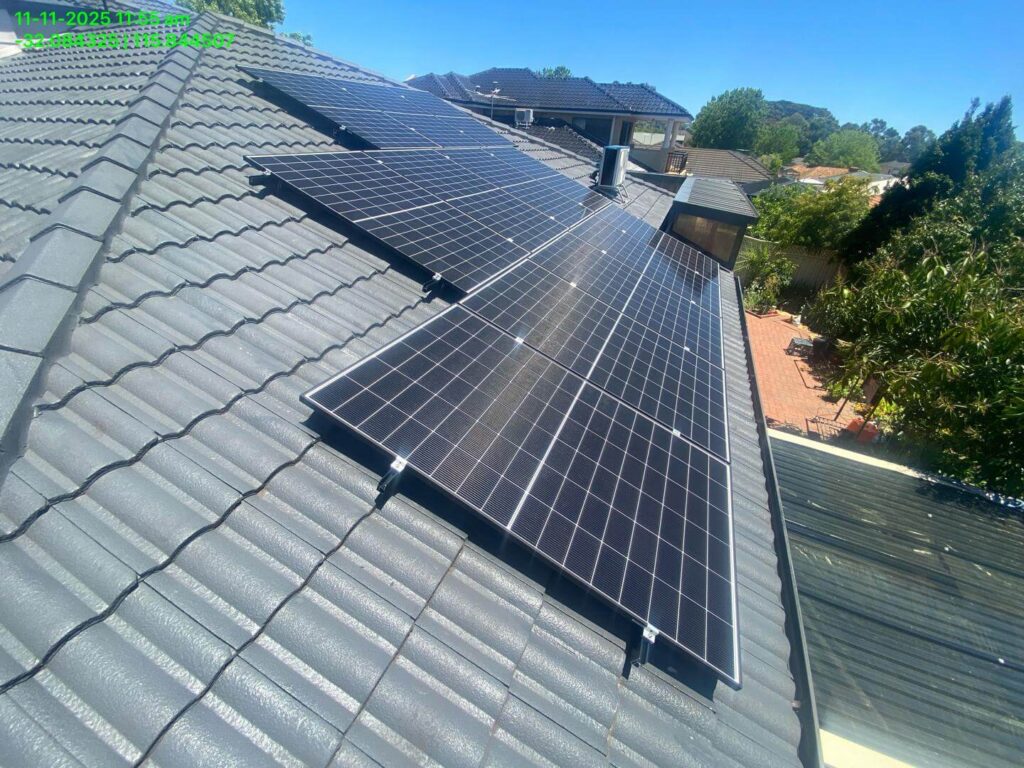

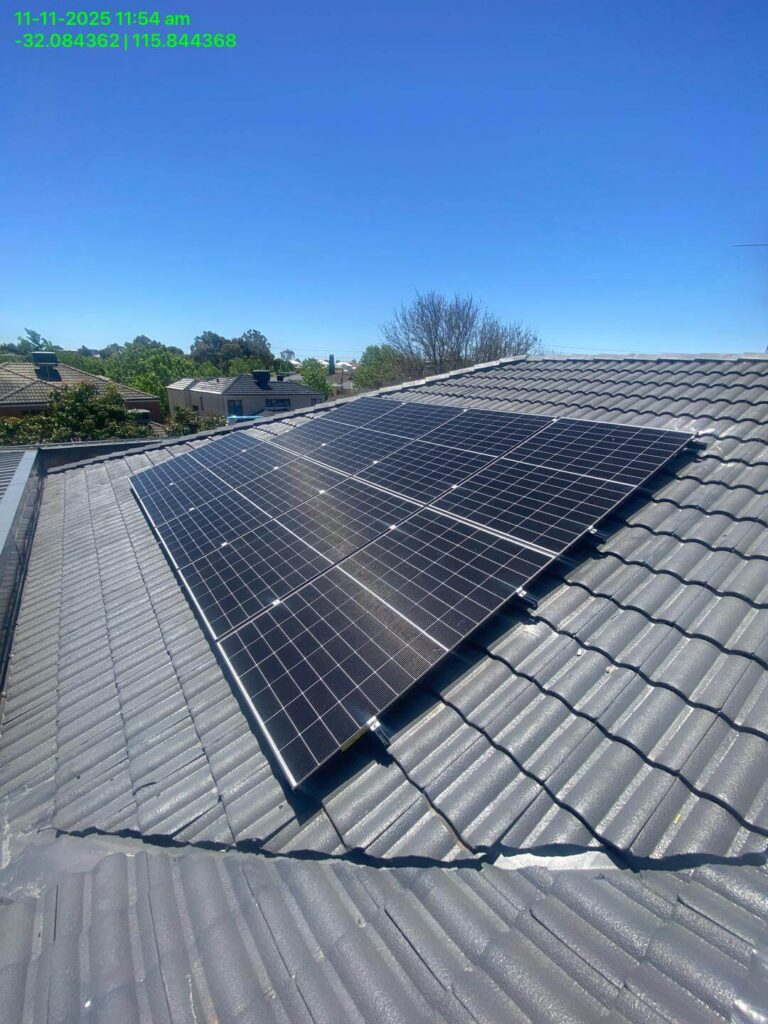

On the roof, the new 9.69 kW solar array was installed across multiple tiled roof sections. Panel placement was selected to capture consistent sunlight through the day and maximise generation for battery charging and daytime household loads.
System Benefits for the Household
- Strong daytime output from the 9.69 kW solar system
- Large 50 kWh battery reserve for overnight and high-demand periods
- Significantly reduced grid reliance
- Blackout protection to keep essential circuits running during outages
- A future-ready layout with room for system expansion if needed
Outcome
This North Lake installation provides a complete solar and battery solution, delivering reliable generation, extensive storage, and added security in the event of a power outage. The tidy internal layout and well-positioned solar array create a long-lasting, efficient system tailored to the homeowner’s needs.
